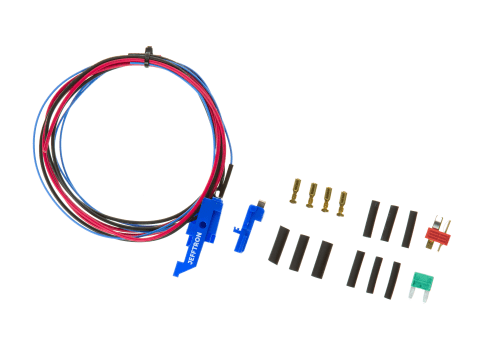

Mosfet V3 with Wiring
Mosfet V3 with Wiring
- Item number:
- 11246800000
- Availability:
- In stock
Payment methods
Bank transfer
Shipping and returns
- Free of charge Shipping from €149.90 Shopping cart
- Fastest shipping
- 2 years product warranty
- 14 days money back guarantee
Description
Precisely and professionally made drop-in MOSFET system designed for Airsoft Electric Guns with V3 gearbox.This system increases the AEG's rate of fire and limits unnecessary battery usage.
In automatic-fire mode, the piston stops in a random position due to the gearbox design.
For proper operation, it is necessary to have a functional gearbox cut-off lever, selector plate, reverse latch, trigger, and trigger block, as it has the standard gearbox.
Device features:
- Pre-soldered wires allow for faster and easier installation into the V3-type gearbox. Wires are provided with the additional length for user adaptation.
- Two high-quality AWG16 1,5mm wires with a length of 400 and 600 mm. Blue AWG22 0.34qmm wire with protective coating insulation sleeve and a length of 1000 mm.
- Mainboard covered with conformal coating for water resistance.
- Designed for springs up to M160 (equivalent for current 75A single-shot fire or 25A burst fire for max. 30s).
- Ideal for popular batteries up to 17V (Ni-xx 8.4 - 12V, Li-Po 7.4 - 14.8V).
- No current consumption in the idle mode and no sparking on the switch contacts.
Dimensions and weight
- Length packed:
- 17 cm
- Width packed:
- 10.2 cm
- Height packed:
- 1 cm
- Weight:
- 0.043 kg
- Weight packed:
- 0.05 kg
