Description

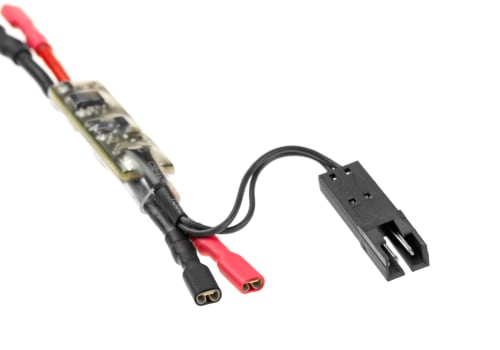

PicoAAB is one of the most compact 3rd generation mosfet with Active Brake. It’s small dimensions give the user the option to use it even in most confined spaces – it’s size do not prevent it from being very powerful. It can work with the strongest AEG replicas - 14.8V Li-Poly maximum battery voltage.
The installation is very easy and the interference in the replica is limited only to running one or two additional wires from the contacts.
Key functions:
MOSFET transmits the energy from the battery directly to the motor, bypassing the traditional mechanical trigger contacts. As a result, the replica gains a higher rate of fire, faster trigger response, and the contacts are protected against burn out.
ACTIVE BRAKE in SEMI Mode does not allow for compressing a piston after a shot. The piston will stop in the front position which eliminates unnecessary stresses, increasing the service life of the gearbox and its parts. This is important, especially in AEG power upgrade.
ELECTRONIC FUSE – the unit has thermal protection for increased durability and in combination with a time-lag fuse, it fully protects your AEG installation.
DEBOUNCING - provides full compatibility with micro-switches. It ensures complete resistance to contact bounce and thanks to it the replica gain a bigger ROF, a faster trigger response and the MOSFET is less prone to overheating.

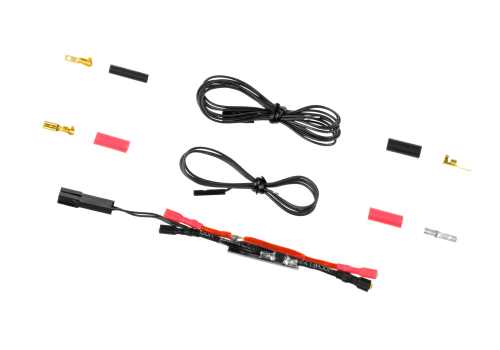

Included in the kit:
PicoAAB Single signal wire for trigger contacts
Double signal wire for trigger contacts
Male terminal [2,8x0,8mm] with red heatshrink tube (for battery positive wire)
Male terminal [2,8x0,5mm] with black heatshrink tube (for motor negative wire)
Male terminal [2,8x0,5mm] with red heatshrink tube (for motor positive wire)
Female terminal [2,8x0,5mm] with black thin heatshrink tube (for battery negative wire)

Warning: GATE does not guarantee the compatibility of mosfets and ETUs such as TITAN or ASTER with brushless motors. Connection of a brushless motor can cause immediate damage to the device, motor and battery, that is not covered by the warranty and can lead to a fire.
